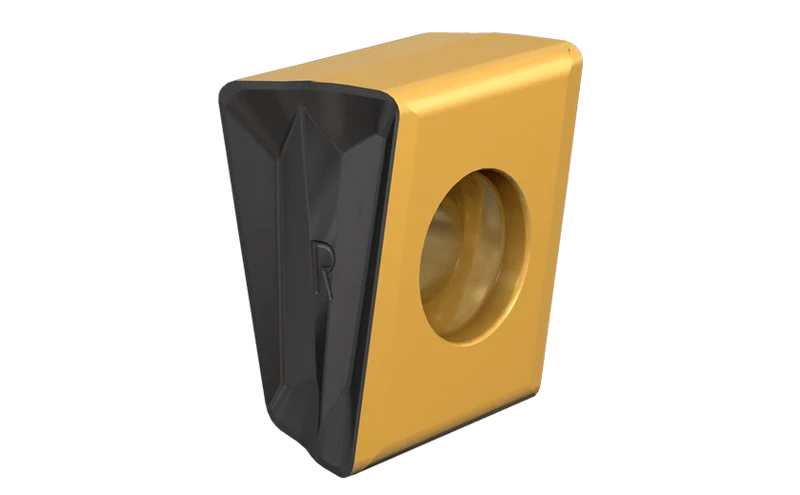

T490 LNMT 1306PNTR IC810 Tangentially clamped indexable inserts with 4 helical cutting edges.

Insert for milling, max. cutting edge length (APMX) 12.5 mm, cutting insert length (INSL) 13.74 mm, cutting insert thickness (S) 13.05 mm, cutting insert width (W1) 6.65 mm Feature: Corner radius (RE) 0.8 mm Direction (HAND) Right Hand Maximum cutting length (APMX) 12.5 mm Figure 1. Cutting insert included angle (EPSR) 90 Degrees Cutting insert length (INSL) 13.74 mm Cutting insert thickness (S) 13.05 mm Cutting insert width (W1) 6.65 mm maximum feed fz max 0.25 mm/tooth minimum feed rate fz min 0.1 mm/tooth Number of cutting edges 4
