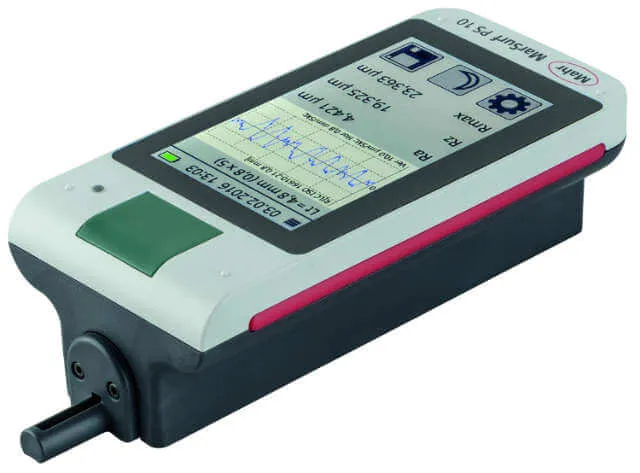

Surface measuring instrument MAHR, MarSurf PS10

Version:
- handy roughness measuring device for mobile use
- simple and intuitive operation
- large, illuminated 4,3
- Display rotatable
- Start button simultaneously home button for direct access to the start view
- Data backup as TXT, X3P, CSV, and PDF file
- off-grid operation - over 1.200 measurements without recharging
- flexible due to removable feed unit
- for all measuring positions - horizontal, vertical, overhead
- with integrated, removable rough standard
- Quick access to functions via favorites storage in the display
- Standards DIN-ISO/JIS/ASME/MOTIF selectable
- Adjustment of asymmetric cut levels for peak counting
- Tolerance monitoring
- Lock and/or password protection for device settings
- Date and time for logging

How to use:
- Roughness measurements on-site directly at the workpiece
- Measuring in the production process
- universal on the processing machine
- in incoming goods inspection

Delivery:
MarSurf PS10 base unit, drive unit, standard probe (compliant), battery (built-in), roughness standard (incl. Mahr calibration certificate), probe protection, charger, 3 power adapters, operating manual, carrying case with shoulder strap, USB cable, extension cable for drive unit, height adjustment (integrated)

Features:
- Unit of measurement: metric/inch
- Measuring principle: Touch-probing method
- Probe: inductive skid probe, 2 µm probe tip, measuring force approx. 0,7 mN
- Characteristics:
=> DIN/ISO: Ra, Rq, Rz, Rmax, Rp, Rpk, Rv, Rk, Rvk, Mr1, Mr2, A1, A2, Vo, Rt, Rv, RPc, Rmr, RSm, Rsk, CR, CF, CL, R, AR, Rx
=> JIS: Ra, Rq, Ry (corresponds to Rz), RzJIS, tp (corresponds to Rmr), RSm, RS
=> ASME: Rp, Rpm, RPc, Rsk, tp (corresponds to Rmr)
=> MOTIF: R, AR, Rx, CR, CF, CL
- Languages: 17, including 3 Asian
- Measuring range: 350 µm
- Profile resolution: 8 nm
- Filter*:
=> Gaussian filter according to ISO 16610-21
=> Special filter according to DIN EN ISO 13565-1
=> Is filter according to DIN EN ISO 3274 (can be switched off)
- Cutoff Ic*: 0,25 mm | 0,8 mm | 2,5 mm | automatic
- Probe travel Lt*: 1,5 mm | 4,8 mm | 15 mm | automatic | N × Lc, freely selectable
- Scanning distance (according to MOTIF): 1 mm | 2 mm | 4 mm | 8 mm | 12 mm | 16 mm
- shortened cutoff* Selectable
- Total measuring range In*: 1,25 mm | 4,0 mm | 12,5 mm
- Number of individual measuring sections*: selectable from 1 to 16
- Calibration function: Dynamic
- Storage option: 3.900 profiles, 500.000 results, 1.500 PDF files, expandable with microSD card up to 32 GB
- Dimensions: H × W × D = 160 × 77 × 50 mm
- Weight 500 gr
- Battery: Li-ion battery, 3,7 volts, nominal capacity 11,6 Wh
- Interfaces: USB device, MarConnect (RS 232 C, USB), micro SD slot for SD™ / SDHC cards up to 32 GB
- Wide-range power supply: 100 volts to 264 volts

*according to ISO/JIS
