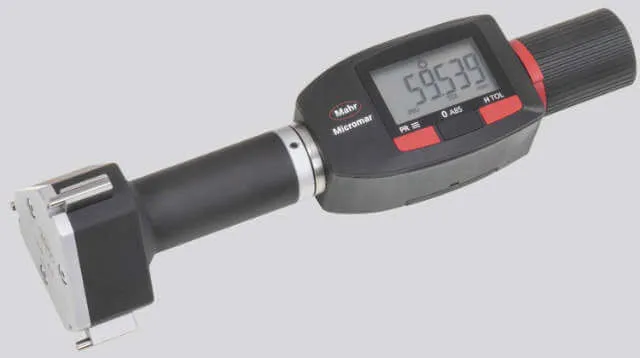

Precision Digital Three-Point Internal Micrometer MAHR, 44 EWR

Version:
- Connection thread for replacing the measuring heads
- self-centering measuring head with 3 measuring contacts (arrangement 3 x 120°)
- Measuring jaws reinforced with carbide from 12 mm
- from 12 mm measuring jaws for measurements up to the bore bottom
- from 40 mm measuring head housing made of anodized aluminum
- large, high-contrast numeric display with clear tolerance symbols for measurement classification: Reject, Good, Warning limits
- Data interface bidirectional (via USB data query, parameter transmission, remote control, individual function locks via MarCom software)

How to use:
For measuring through or blind hole bores.

Features:
- RESET (Zeroing the display)
- ABS (Display can be zeroed without losing the reference to the PRESET)
- mm/inch switch-over
- PRESET (dimension presetting)
- TOL (Tolerance and Warning Limits)
- HOLD (freeze current measurement value)
- DATA (only in conjunction with data connection cable)
- LOCK function (keyboard lock)

Delivery:
Base unit 44 EWR-g, measuring head 44 Ak, operating manual and battery.

Note:
Find suitable connection cables under 398005 on page 39/???.
