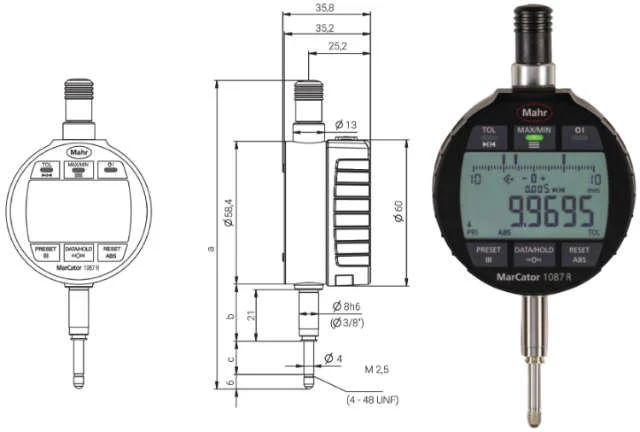

Precision Digital Dial Indicator MAHR, MarCator 1087 R

Version:
- hardened glass front with touch control panels
- scratch- and impact-resistant surface
- excellent protection against dust, coolants, and lubricants
- wear-free touch control buttons
- improved safety of measurement results in measuring stands, as no probe pressure is required
- Operating and display unit rotatable by 280°
- distinct tolerance symbols and colored LED signals (red, green, yellow) for measurement classification, scrap, good, warning limit, or rework
- high-contrast LCD display
- Clamping shank and measuring bolt made of stainless, hardened steel
- Data interface bidirectional (via USB data query, parameter transmission, remote control, individual function locks via MarCom software)

Features:
- extensive measurement functions for dynamic measurements such as flatness, parallelism, and runout tests, and for static measurements, such as lengths, distances, and length differences
- MAX-MIN function for runout and flatness testing
- MAX/MIN memory for reversal point search
- ON/OFF, RESET (Resetting the display)
- PRESET (dimension presetting)
- Directional reversal
- TOL (Tolerance Input)
- ABS (Display can be zeroed without losing reference to PRESET)
- LOCK (individual key lock)
- HOLD (freeze current measurement values)
- DATA (in conjunction with data connection cable)
- Factor (adjustable)

Note:
Find suitable connection cables under 398010 on page 39/???.
