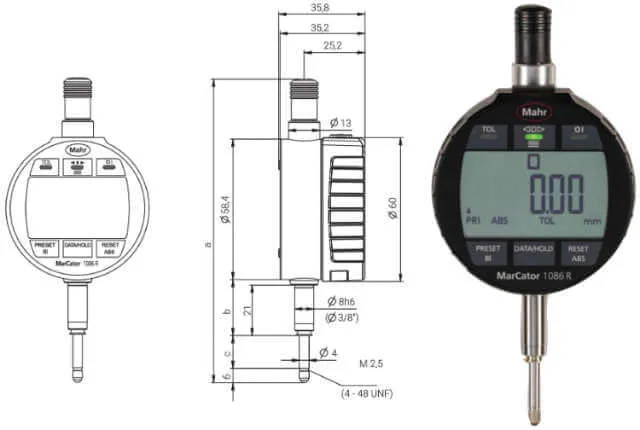

Precision Digital Dial Indicator MAHR, MarCator 1086 R

Version:
- hardened glass front with touch control panels
- scratch- and impact-resistant surface
- excellent protection against dust, coolants, and lubricants
- wear-free touch control buttons
- improved safety of measurement results in measuring stands, as no probe pressure is required
- Operating and display unit rotatable by 280°
- distinct tolerance symbols and colored LED signals (red, green, yellow) for measurement classification, scrap, good, warning limit, or rework
- high-contrast LCD display
- Clamping shank and measuring bolt made of stainless, hardened
- Data interface bidirectional (via USB data query, parameter transmission, remote control, individual function locks via MarCom software)

Features:
- ON/OFF
- RESET (Zeroing the display)
- PRESET (dimension presetting)
- ABS (Display can be set to zero without losing the reference to the preset)
- 0 (Mode of tolerance display)
- mm/inch
- Directional reversal
- TOL (Tolerance and Warning Limits Input)
- LOCK (individual key lock)
- HOLD (freeze current measurement values)
- DATA (in conjunction with data connection cable)
- Factor (adjustable)
- extensive measurement functions for static measurements such as lengths, distances, and length differences

Delivery:
Battery, test protocol, operating manual

Note:
Find suitable connection cables under 398010 on page 39/689.
