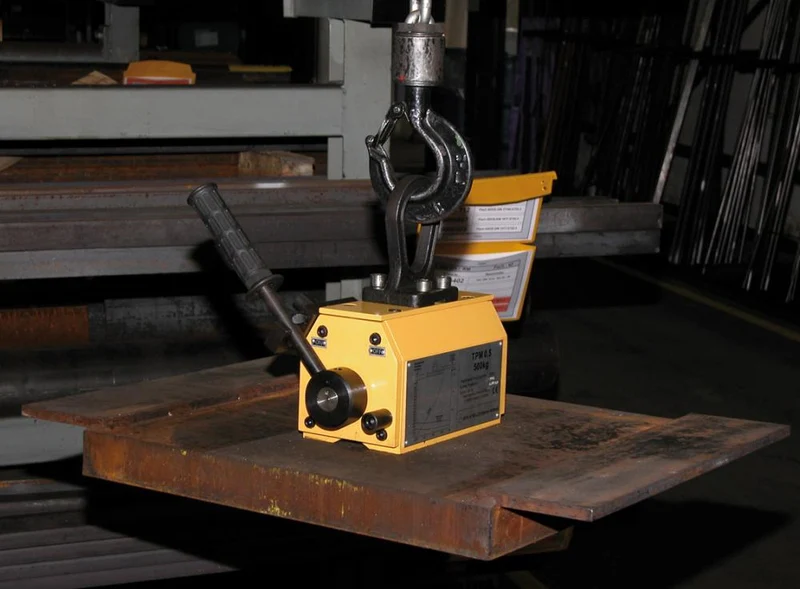

Permanent Lifting Magnet YALE, TPM 0,1 Load Capacity max. 100 kg Flat Material

Version:
-Permanent Lifting Magnet, Model TPM The permanent lifting magnets are designed for simple, quick, and economical use in transporting heavy workpieces made of ferromagnetic material, for workshops and storage, loading and unloading of machines, as well as fixture construction.
- Flat material load capacity: 100–3000 kg
- Round material load capacity: 50–1000 kg
- Chuck: not mechanically influenced, capable of holding flat and round materials
- Magnet material: highly efficient, large lifting capacity with low dead weight
- Advantage: Permanent magnets require no electrical supply, only slight residual magnetism after deactivation.
- On/Off: with hand lever, locked in the activated state by safety interlock, prevents unintentional demagnetization
- Safety note: consider when selecting magnets: surface condition, material alloy, and plate thickness of the materials For maximum load capacity: contact surface must be clean and free from dirt, oil, grease, scale, rust, paint, etc. * Measured on bright-drawn material St 37.
