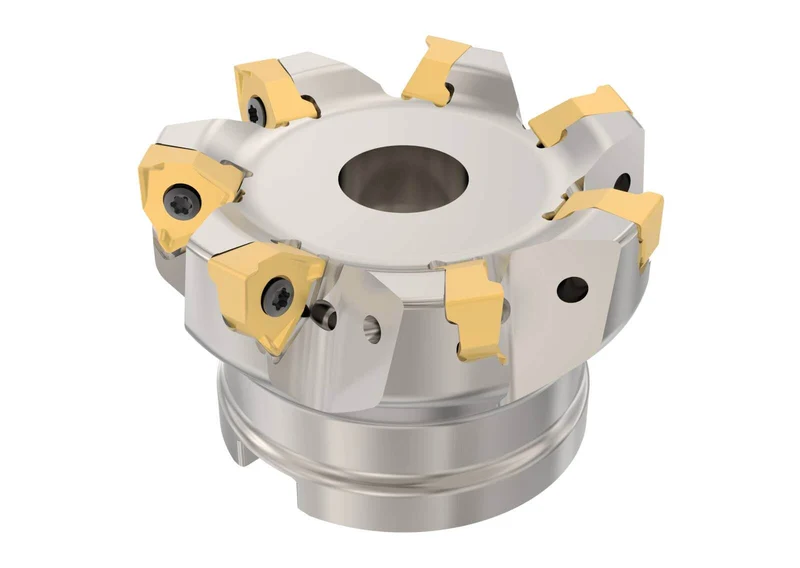

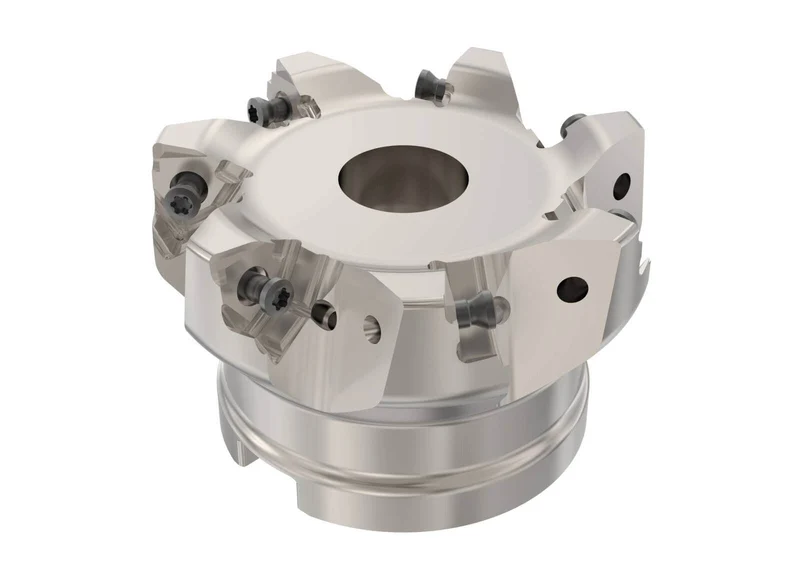

Milling tools R220.96-0080-08-7A

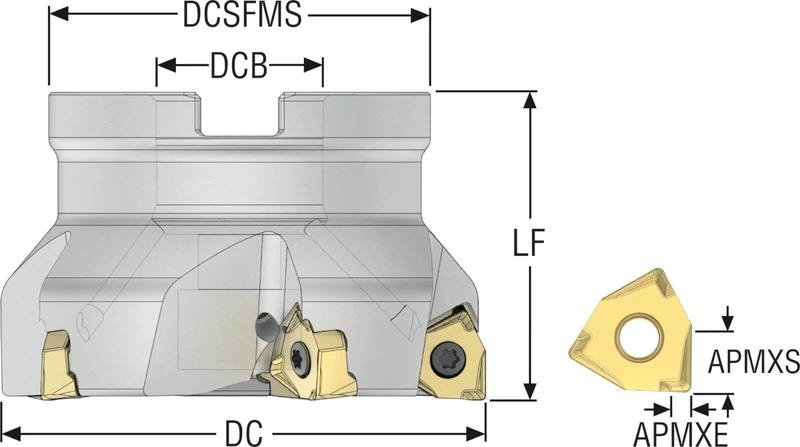

Max. radial cutting depth: 3.00 mm Max. cutting depth axial: 7.50 mm Product barcode: 00662885163265 Depth of the drive slot: 7.0 mm Thread pitch difference: Yes Pitch density: Normal Coolant supply property: Internal coolant Tool diameter: 80.000 mm Bore diameter holder: 27.00 mm Tool support diameter: 62.0 mm Radial rake angle: -11.2 deg Axial rake angle: -6.3 deg Product number 02623198 Tool angle in feed direction end: 90.0 deg Tool angle in feed direction side: 90.0 deg Groove width: 12.4 mm Functional length: 50.00 mm Max. inward copying angle: 0.0 deg maximum speed: 8400 rpm Shank type: Arbor Net weight : 0.979 kg Number of peripheral effective cutting edges: 7
