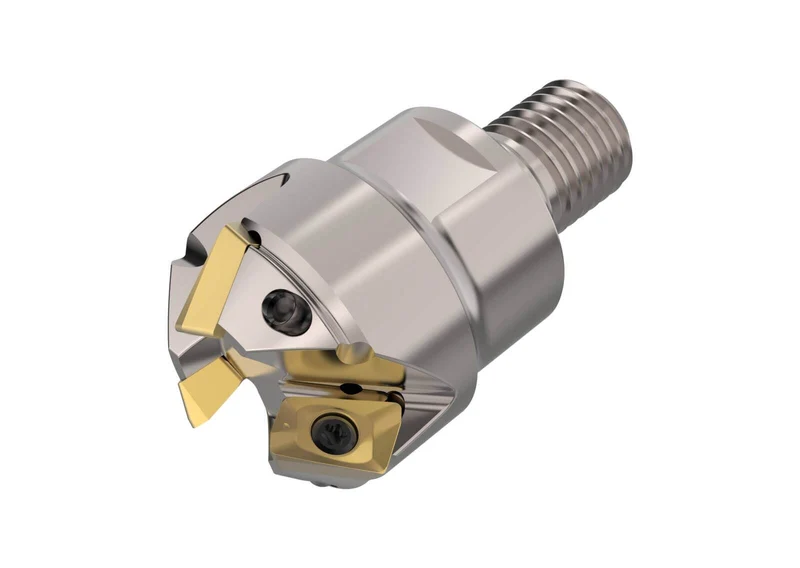

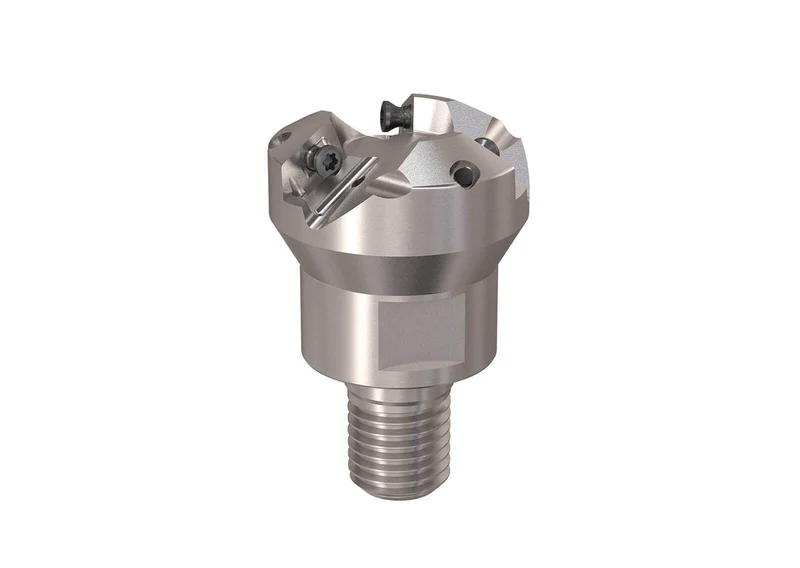

Milling tools R217.49-1620.RE-XO12-30.3A

Additional information 2 : Modification of the cutter body for indexable inserts RE > 2,4 mm Maximum cutting depth in feed direction side: 5,50 mm Product barcode: 00662885175640 Tightening torque for the connection: 80,0 Nm Coolant supply property: internal cooling Cutting diameter: 20.000 mm Diameter of the contact surface machine-side: 30,0 mm Maximum cutting diameter: 39,8 mm Rake angle radial: -5.0 deg Rake angle orthogonal: -5.0 degrees Axial rake angle: -5.0 deg Article Number: 02669573 Cutting angle of the tool in the feed direction lateral: 30.0 deg Functional length: 40.00 mm Number of flutes: 3 Maximum rotational speed: 16400 rpm Wrench size: 26.0 mm Shank type: Combimaster Thread diameter: M16 Net weight : 0,285 kg Number of effective cutting edges on the circumference: 3 Peripheral cutting in the tool: 3
