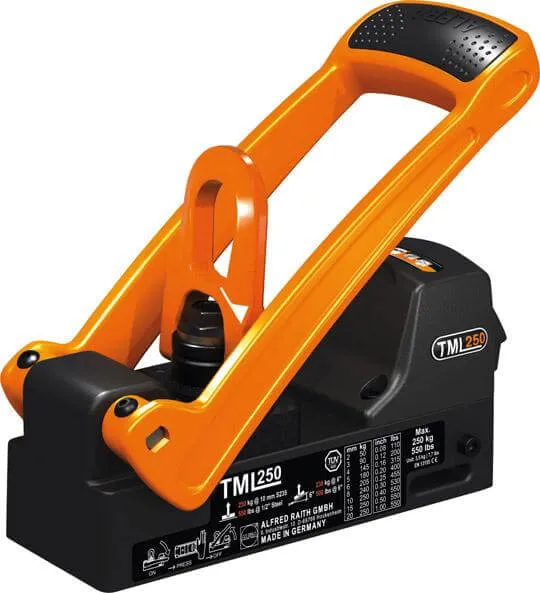

Lifting Magnet NEUTRAL, TML 250 max. Load Capacity 250kg B91xT240xH91 mm

Version:
-Load Lifting Magnet TML This load lifting magnet is suitable, for example, for transporting ferromagnetic materials and welded parts, among others. It protects hands and fingers from hot and sharp-edged steel (max. temperature 60 °C).
- Load swivel: 360° rotatable and pivotable
- Magnetic holding surface: hardened, TiN-coated
- Compact magnetic field
- Adhesive force: also on thin materials under 10 mm
- Operating temperature: –10 °C to 60 °C
- Hardened, TiN-coated magnetic adhesive surface Max. load capacity (on flat material with a 3:1 safety factor): 250 kg from 10 mm Max. load capacity (at a 6° incline in accordance with EN 13155 with a 3:1 safety factor): 230 kg from 10 mm Tear-off force: >750 kg from 10 mm Operating temperature: -10°C to +60°C Info: Specified load capacity plus 3-fold safety factor in lifting operation = the force that causes the sheet to tear off must be three times the maximum lifting force.
