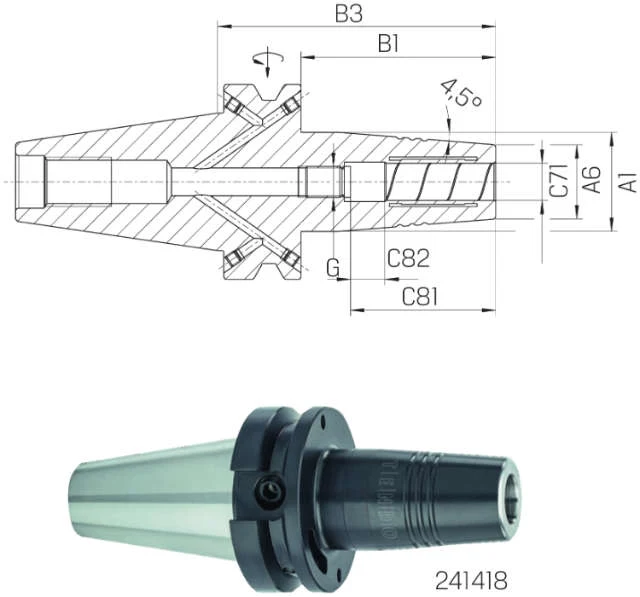

Hydraulic Expansion Chuck SCHUNK, TENDO Slim 4ax, short

Version:
- Heat-shrink contour according to DIN 69882-8
- With axial length adjustment
- For automatic tool change
- Balancing quality G2,5 at 25.000 min-1
- Permanent concentricity and alternating repeatability < 0,003 mm
- MMS-compatible design (Minimum Quantity Lubrication)
- Bore for data carrier according to DIN 69873

How to use:
- Easy handling
- short setup times
- long tool life
- high flexibility
- excellent vibration damping
- Application possibility with minimum quantity lubrication
- for axial machining and radial fine machining
- not suitable for shrinking

Delivery:
Without actuation key.

Note:
Additional shank diameters can be clamped using intermediate sleeves (see 241461).
