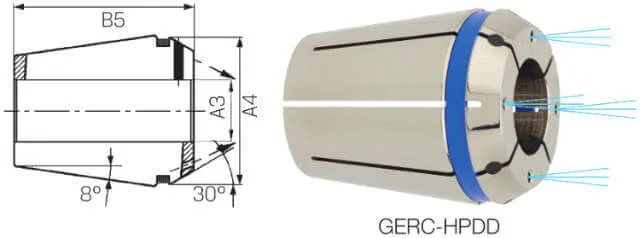

ER-HPDD Collet FAHRION, Precision Collets, Protect 471E GERC40-HPDD, Clamping Range 10,0 - 25,0 mm

Version:
- With sealing for internal cooling up to 60 bar and additional spray nozzles
- Concentricity and repeatability 2 µm
- Similar to DIN ISO 15488-A
- Clamping bridging h8 in the CENTRO|P and in the standard collet chuck, i.e. only the nominal dimension can be clamped
- The blue identification ring (no sealing function) must be removed when used in the standard collet chuck
- Shafts with a lateral clamping surface can only be used to a limited extent, i.e. the surface must be behind the rubber stopper in order to achieve a seal

How to use:
Can be used for all tools with a straight shank for high-precision and powerful clamping in high-precision machining or heavy-duty cutting.
