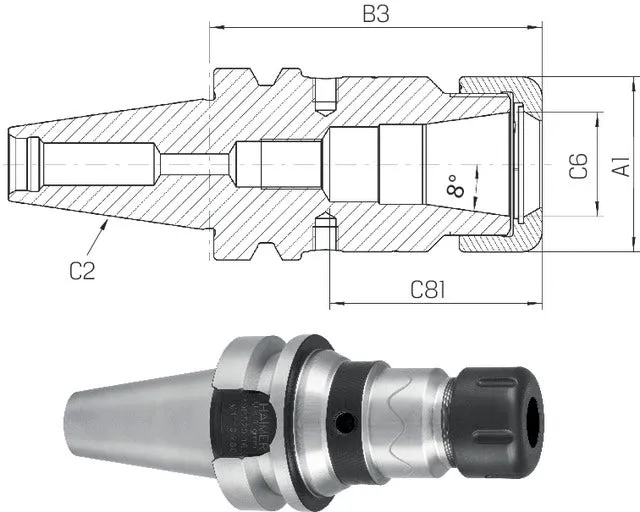

Collet chuck with face contact HAIMER, Power, ZG75

Version:
- Additional support on the flange face for more stability
- high concentricity accuracy: 0,003 mm at 3 × A1 with HAIMER Power Collets
- high rigidity
- increased smoothness due to low-vibration geometry, resulting in better surface quality and protection of tool, spindle, and machine
- Increased cutting performance thanks to higher speeds, higher feed rates and greater depth of cut
- equally suitable for high-speed machining and heavy-duty machining
- shorter machining times, better dimensional accuracy, and high clamping force
- with threaded holes for balancing with screws (except 243220 and 243222)

Note:
Also for standard ER collets according to ISO 15488. Note: When using standard ER collets, the A-dimension becomes longer.
