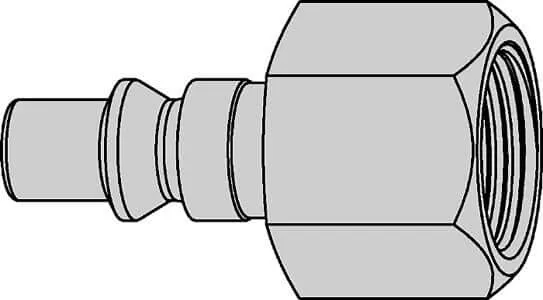

Cejn Nipple Series 300 with IG ¼

The eSafe couplings of the 300 series offer high flow and require only low connection force, ensuring a safe working environment. eSafe is a one-hand operated safety coupling that vents before disconnection, eliminating the risk of hose whip. The external threads of the couplings and nipples are provided with a pre-installed thread sealant. Fully automatic operation ensures quick and easy handling. eSafe complies with ISO standard 4414. Category Title: Nipple Class designation: Internal thread Connection: G 1/4" Connection type: Standard quick couplings Flow nominal diameter (mm): 5,5 mm (0,2 Airflow (l/min): 1050 l/min (37,1 CFM) Maximum operating pressure (bar): 16 bar (232 PSI) Min. burst pressure (bar): 140 bar (2030 PSI) Connection force (N): 86 N Min. temperature (C): -20°C - +100°C (-4°F - +212°F) Material standard (std): Steel Material Nipple: Hardened Steel (Zinc) Nipple Standard: ARO 210 Standard 5,5 mm
